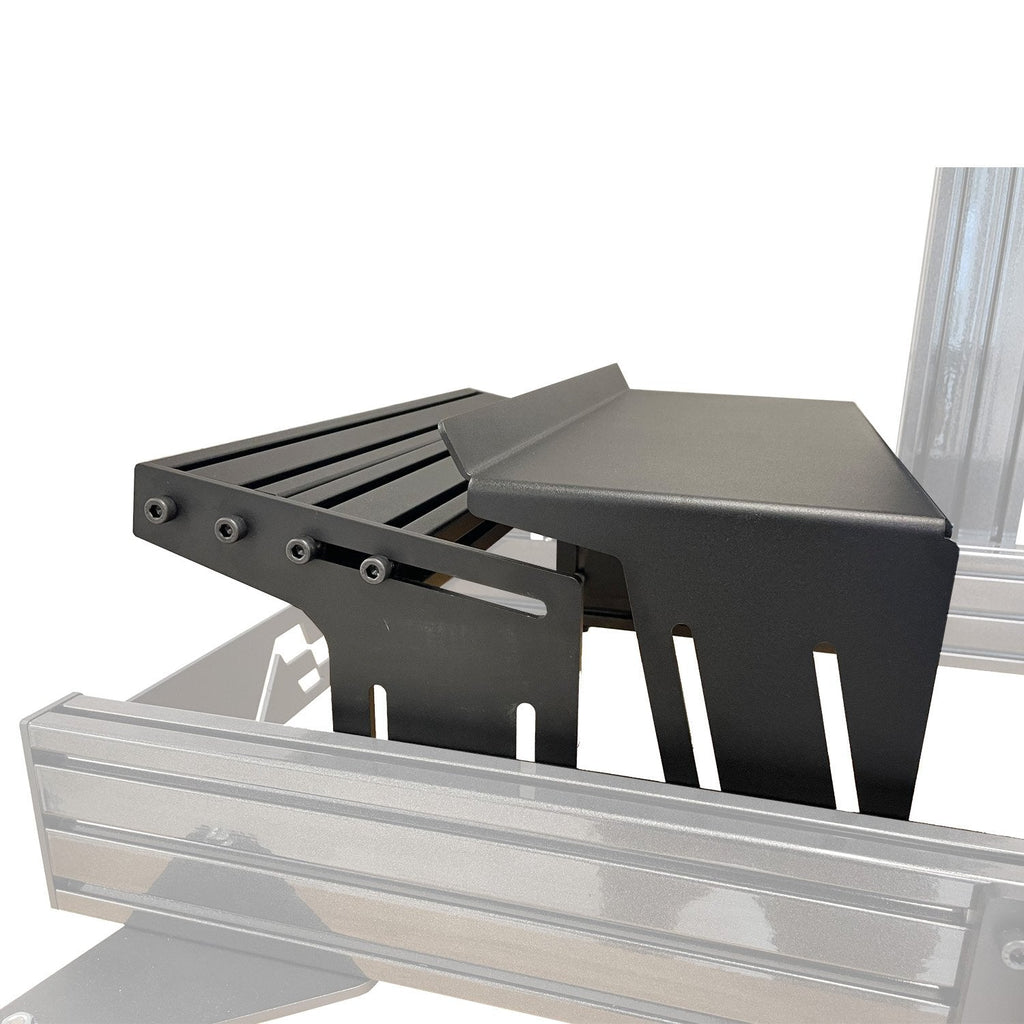

Aluminum Pedal Deck & Heel Rest

Sale price$149.99 USD


Customer Reviews
4.1 Based on 8 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Write a Review
Write a review
1 2 3 4 5

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Caleb L.
United States

Great pedal deck, tricky to get positioned just right

Very sturdy pedal deck with lots of articulation. Almost to the point that it’s difficult to get lined up in the most comfortable position. However, once you find the sweet spot there is no flex or movement whatsoever. Highly recommended.

Mario B.
Canada Canada

Lots of Adjustability

The aluminum pedal deck and heel rest is another solid ASR product. Glad I ordered this option. Hint -- when installing, use two bolts per side to prevent movement. I used lock washers that I had lying around, in order to help prevent movement during hard braking, and now it won't budge.

Marc L.
Canada Canada

ASR Aluminum Pedal Deck & Heel Rest

Like the other review mention, the person/people who designed it pretty clearly didn’t try to use it. the side bolts hit the profile of the cockpit if you try to angle it. also there's different set of screws for the heelrest. would of been easier to include all socket head cap screws. Also 2 bolts are missing on each side of each piece. they include one bolt per side slot instead of 2. it's not a bad product but for the price it should be better imo. comes close to 200 with tax when you can find alternative just as good (flex free) on the market for almost half the price. overall 2.5/5

Canada Canada

Works great. Had to use spacers since my rig is wider than this unit but otherwise it's solid.

Jonathan N.
United States United States


The person / people who designed it pretty clearly didn’t try to use it before saying it was a good product to ship. Adjusting it is unpleasant and due to tolerance issues, you have to hit the part the pedals mount to with a hammer in order to get it back into the chassis. But it will probably be fine if I can get it adjusted to my liking.


  • The Aluminum Pedal Deck & Heel Rest is designed to support the most performant SimRacing pedals available today.
  • Thanks to it's aluminum composition, it will ensure maximum rigidity and zero flex when used with the most robust load-cell or hydraulic pedal sets.
  • The Heel Rest is completely separate from the Aluminum Pedal Deck, allowing for a maximum number of configurations and positions.
  • Gives you the opportunity to find the perfect position for your pedal set through a wide range of height, angle and depth adjustment possibilities.
  • Comes powder-coated in black for a premium finish and scratch resistance
  • Zero flex and no weak points design philosophy.
  • Made from top-grade alloy Aluminum sourced in the United States of America
  • Produced and packaged in Canada with the utmost care and attention.
    • Built with thick steel plates and strong aluminum beams to support your pedal set.
    • Can be adjusted vertically 4" up or down.
    • The Aluminum Pedal Deck & Heel Rest are independent from each other, allowing for maximum adjustability.
    • The Aluminum Pedal Deck can be angled up to 75 degrees.
    • Maximum gap between outer channels : 7 5/8"
          WHAT'S INCLUDED?
          • Box 1 - 20" x 9" x 6"
            • 2 x Aluminum profile 18.5" x 3" x 1.5"
            • 2 x 1/4" Side Steel Plates
            • 1 x 1/8" Steel Heel Rest
            • 12 x M8 Socket Cap Screws (16mm)
            • 4 x M8 Screws (12mm)
            • 8 x M8 T-Nuts
                • Heusinkveld
                  • Sim Pedals Sprint
                  • Sim Pedals Ultimate
                  • Sim Pedals Ultimate+
                • MECA Cup1
                • MECA EVO1
                • Simagic P2000
                • Simtrecs ProPedal GT
                • Sim Coaches P1-2/3 Pro Hydraulic Pedals
                • Simforge Engineering Mark-1
                • RaceWerks S1 PRO
                • Simworks PRO GT V3.1 LC Pedal Set
                • Venym Atrax Black Formula
                • Venym Black Widow
                • Cube Controls SP01
                • HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)
                • And many more (please inquire directly with us for specific pedal sets)
              ASSEMBLY GUIDE

              Coming soon!

              More assembly guides available on our dedicated page.

              • FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
              • IMPORT DUTIES COVERED for U.S.-based customers.
              • We ship from Montreal in Canada
              • Our typical lead time before shipping out orders is 5 to 7 business days. This varies depending on the purchased items and our shipping queue.
              • Once the items have shipped, transit time typically takes between 2 and 4 business days
              • Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.

              Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact for information or claims in regards to this lifetime warranty.

              Warranty coverage limitations:

              • Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
              • Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
              • Damage resulting from misuse, abuse, negligence, accidents or shipping damage
              • Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
              • Normal and expected wear and tear
              • Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
              • Dissatisfaction due to buyer's remorse.
