ASR Pro (Generation 2)

DESCRIPTION

• Generation 2 Improvements & Changes
  • Brand new Classic Wheel Deck design that offers even more flexibility and adjustability for the position of your wheelbase.
  • Now available (as an option) with our Pro Wheel Deck for market-leading adjustability on your wheelbase and wheel position and angle.

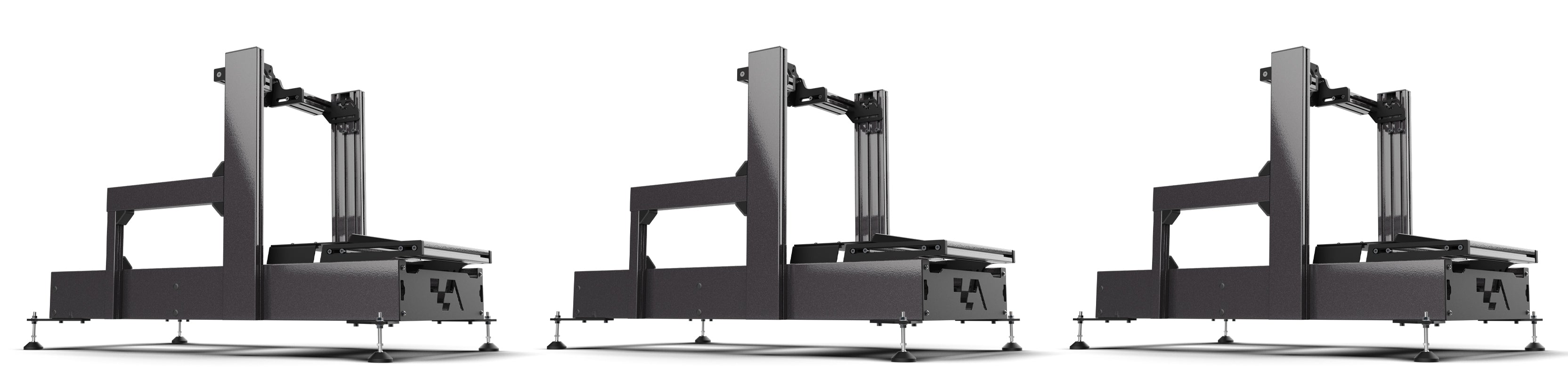

  • Offered in both "Matte Black" and our signature "Infinite Black" powder coat finishes.

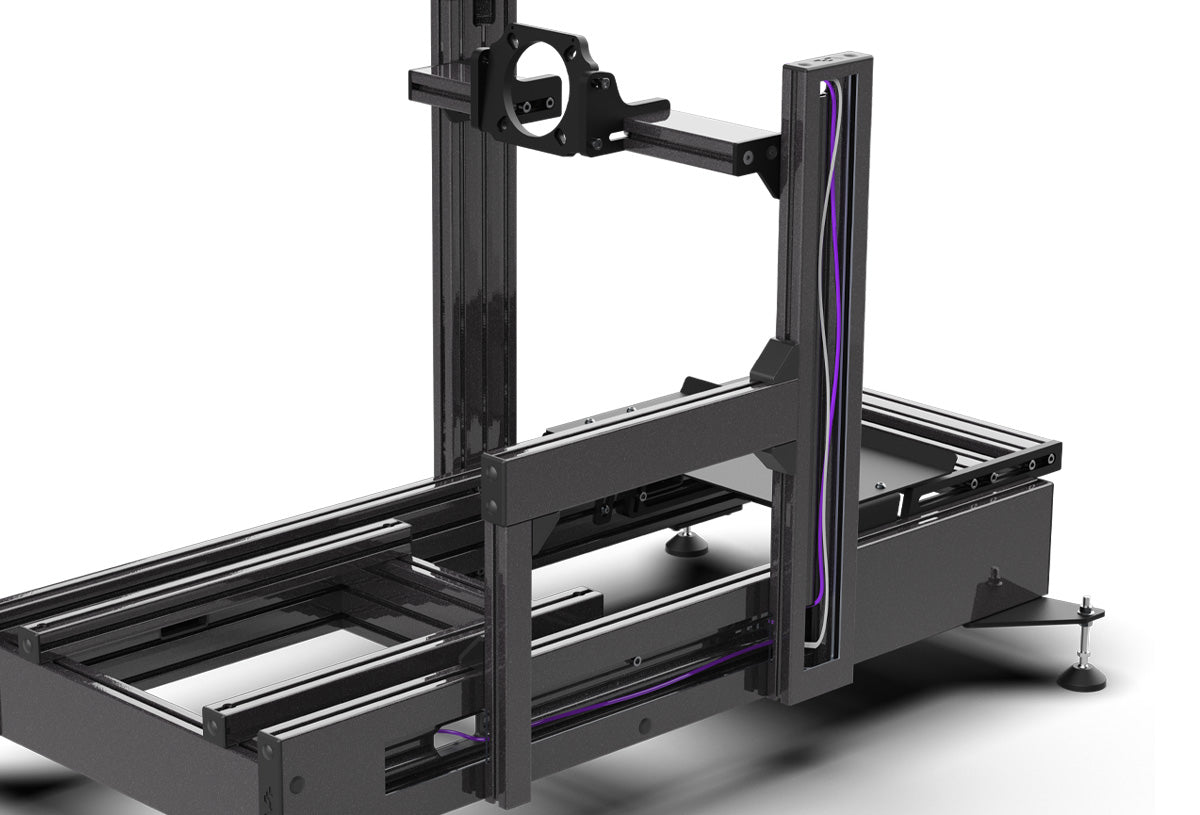

  • Now offered with our signature "Flat Face" Generation 2 Extruded Aluminum Profile that features integrated cable management channels. The new cable management entry and exit ways will be found on the ASR PRO's base and uprights, allowing you to build an extremely clean, well-organized and visually appealing simulator.
  • Revamped Front Plate, allowing for better and cleaner cable management at the front of your simulator
  • Brand new New Generation 2 Pro Aluminum Pedal Tray & Heel Rest design which allows for industry-leading compatibility and maximum adjustability for the position of your pedals. The Pro's Pedal Tray is the thickest and sturdiest out of all our range of chassis, giving you a perfect "no flex" experience, no matter your selection of pedal.

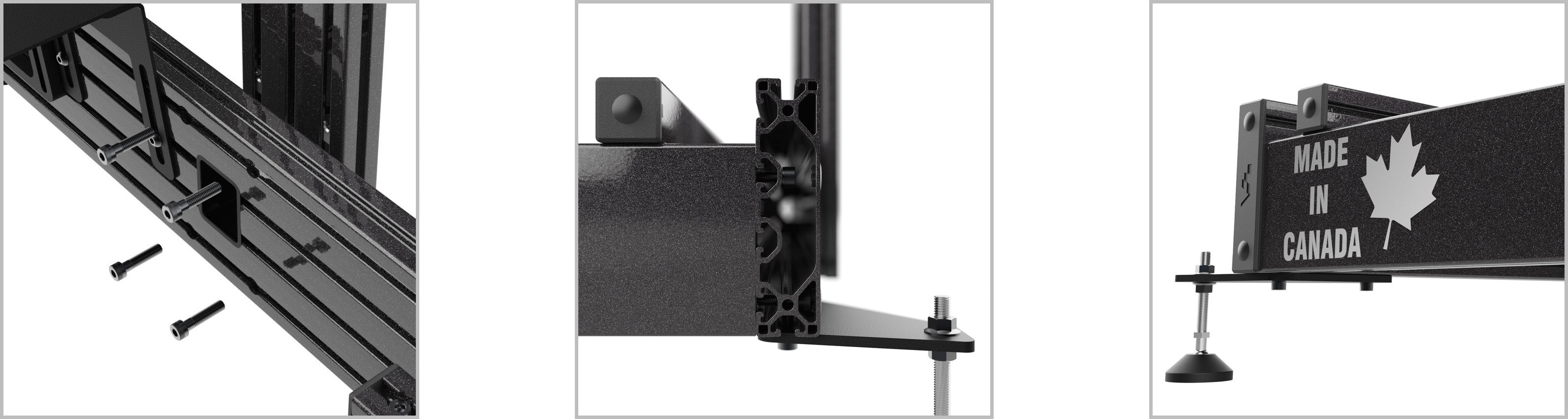

  • Completely overhauled assembly and design principles that allow for a much faster build involving less parts and most importantly, optimized stability and rigidity for the entire chassis.
  • Using key learnings from our Generation 1 ASR PRO flagship chassis, we have improved the assembly and mounting system to offer the maximum possible rigidity and stability.
• The ASR Pro offers the utmost level of stability and rigidity, with the capability of offering a perfect, zero-flex experience with wheelbases over 30nm of torque and the industry's leading hydraulic pedals.

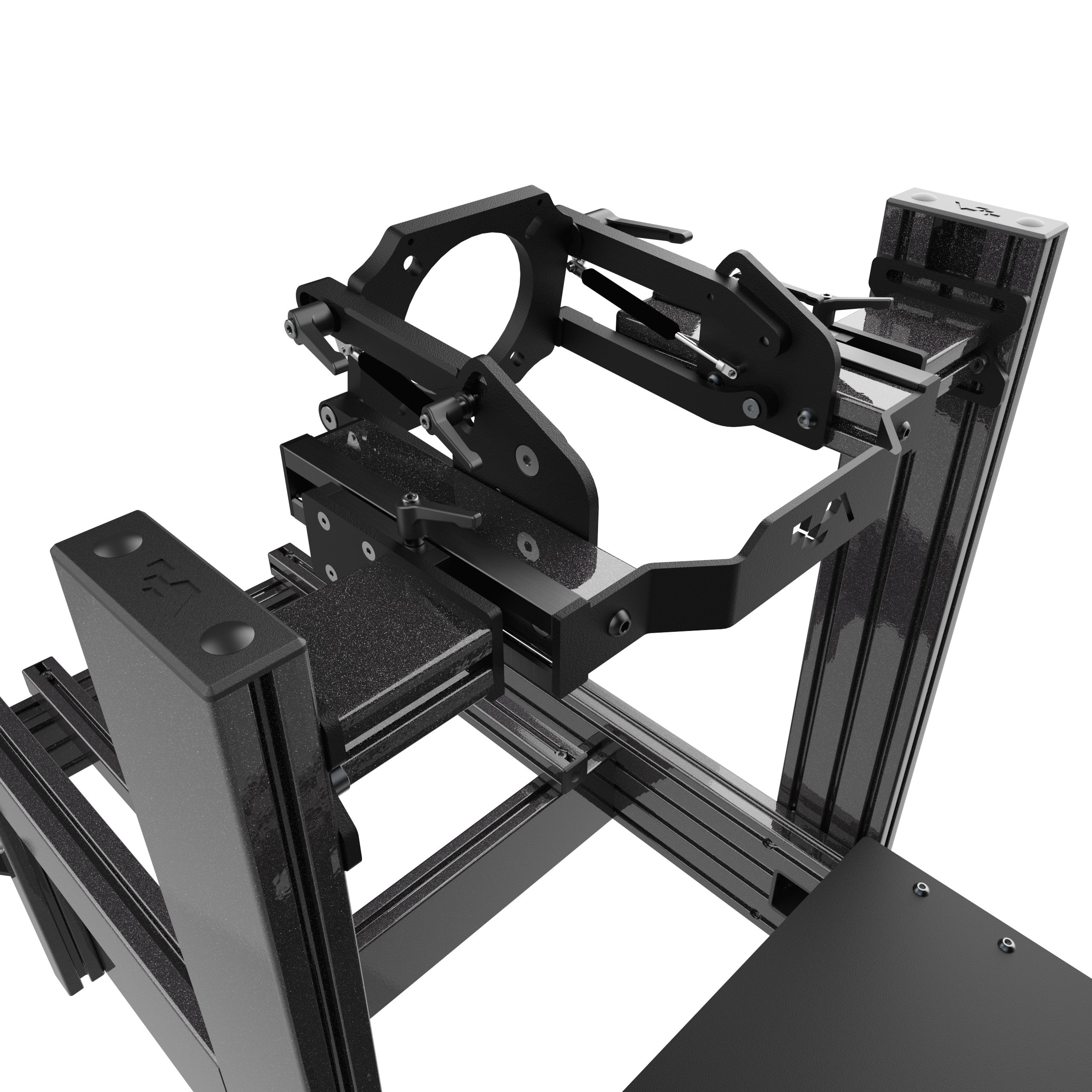

• The most easily adjustable wheel deck ever produced, with quick adjustment handles and sliders for horizontal and vertical position adjustments. For example, switching from a classic D-Shaped GT-style racing wheel to a 15" NASCAR deep dish wheel will no longer be a challenge as it will take less than 10 seconds to adjust your wheel deck's position.

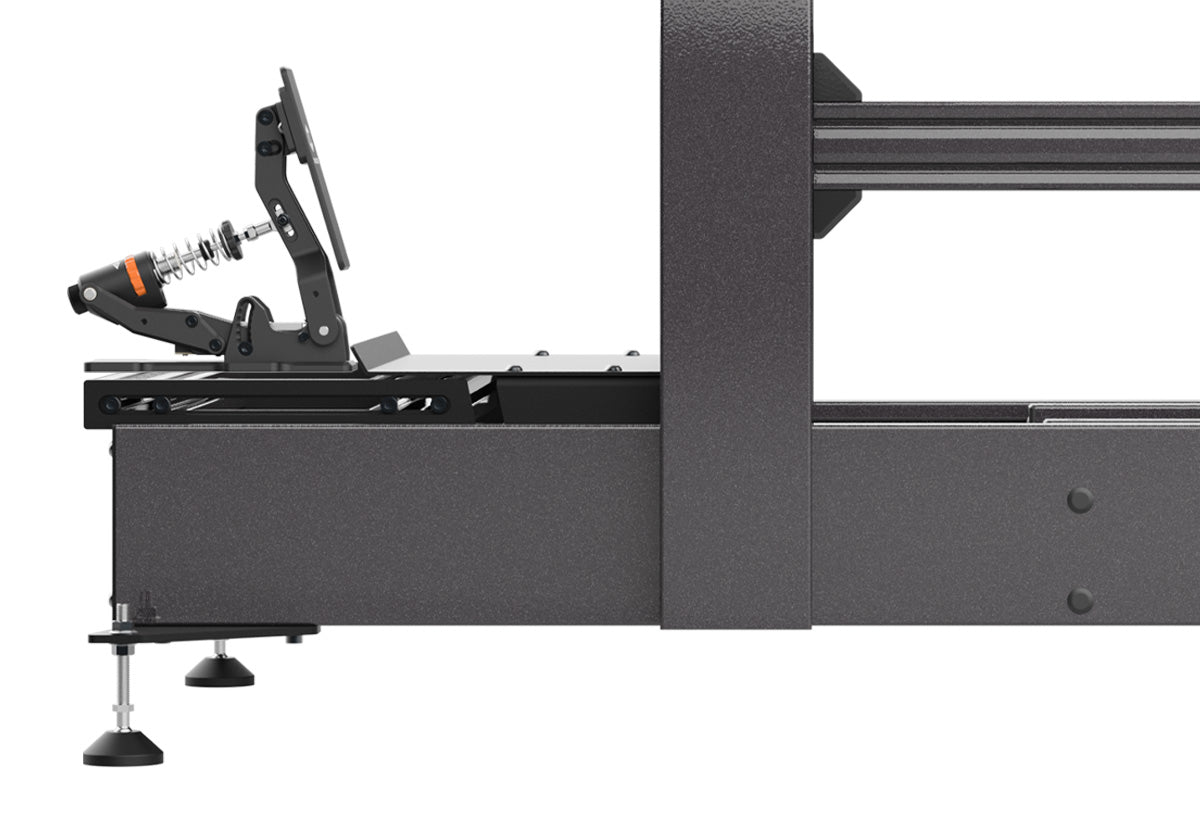

• Independent pedal tray and heel rest with a mounting solution that it makes it extremely easy to adjust the position and angle in a matter of seconds, this will allow you to find the perfect pedal position that suits your needs and racing style.
• Introducing flat face aluminum profile for perfect stability. This top-of-the-line chassis will feature the highest possible grade and thickness of aluminum ever offered in the SimRacing industry.
• High-quality thick steel plates for the front and back of the rig, maximizing stability and making this rig the most stable SimRacing chassis ever assembled.
• An innovative wheel deck design that will allow users to "hot swap" from their SimRacing wheelbase to their FlightSim yoke in less than a minute.
• Built to offer SimRacers the ultimate experience and lifetime durability.
• Made from top-grade alloy Aluminum sourced in Canada.
• Produced and packaged in Canada with the utmost care and attention.

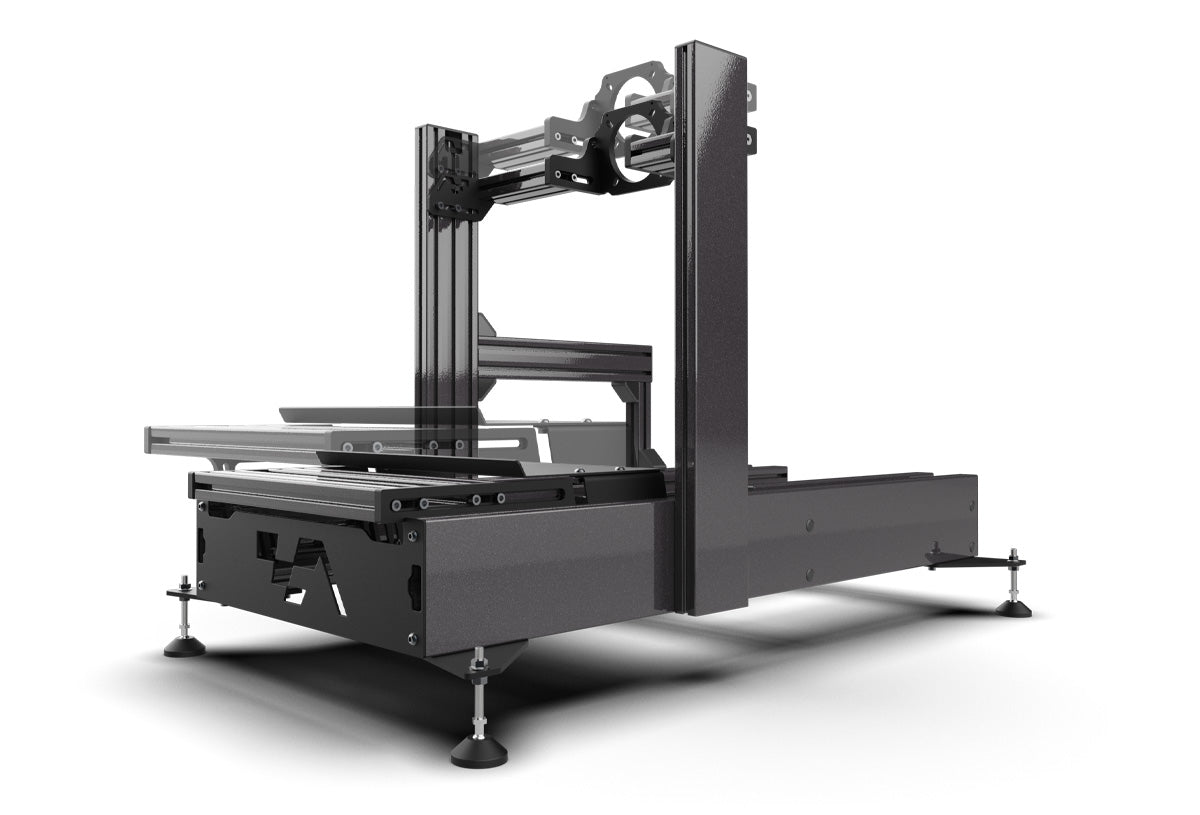

• The extruded aluminum design will let you adjust and configure your simulator in multiple ways, ensuring that you will be comfortable for short and long SimRacing session.
• Thanks to the 6" aluminum base and seat mounting configuration, you will be able to adjust your seat vertically within the base of the chassis.
• Chassis size and format is adequate for most builds and heights (Up to 6'6" or 1.98m).
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)

CUSTOMIZATION

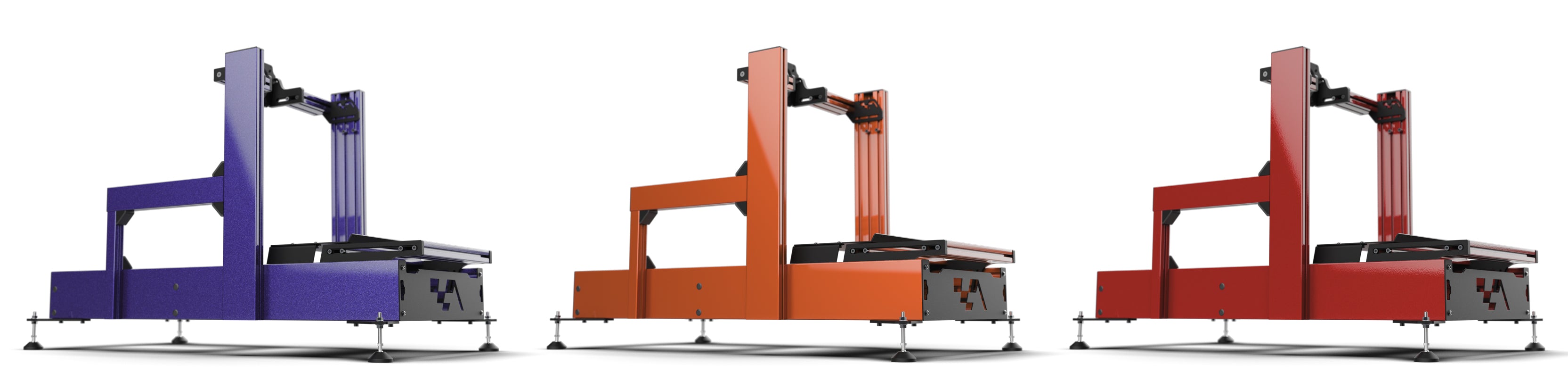

• The ASR PRO is offered in an unlimited variety of powder coat colors on demand. Fancy a SimRacing chassis that matches the color of your favorite racing team? Just ask and we'll make it happen. (info@advancedsimracing.com)
• Flat face aluminum profile allows for unlimited customization. Anyone say UV print? Vinyl Wraps? We offer it all. After all, your racing simulator should be the centerpiece of your entertainment room.

SPECIFICATIONS

• Base length : 50"
• Base width : 22"
• Chassis maximum length (including the pedal tray support base) : 56"
• Chassis width (including the wheel base column) : 25"
• Full product width (including support feet) : 29"
• Height at wheel base column tip : 32"
• Height at pedal tray (when pedal plate is flat) : 18"
• Height at pedal tray (when pedal plate is fully angled) : 21.5"

WHAT'S INCLUDED

• Box 1 (Aluminum) 50’’ x 6’’ x 3’’

  • 1 x Aluminum profile 50" x 6" x 1.5"

  • 1 x Aluminum profile 30" x 4.5" x 1.5"

  • 1 x Aluminum profile 19" x 4.5" x 1.5"

  • 1 x Aluminum profile 22" x 1.5" x 1.5"

  • 1 x Aluminum profile 13" x 1.5" x 1.5"

  • 1 x ASR Front Plate

• Box 2 (Aluminum) 50’’ x6’’ x 3’’

  • 1 x Aluminum profile 50" x 6" x 1.5"

  • 1 x Aluminum profile 30" x 4.5" x 1.5"

  • 1 x Aluminum profile 19" x 4.5" x 1.5"

  • 1 x Aluminum profile 22" x 1.5" x 1.5"

• Box 3 (Aluminum) 22’’ x 4’’ x 3’’

  • 3 x Aluminum profile 18" x 3" x 1.5"

• Box 4 (Hardware & Pedal Tray)

  • 2X Pedal Tray side brackets

  • Left and Right Heel Rest Side Brackets

  • Heel Rest Plate

  • 8 x Corner Gussets and Plastic Caps

  • 22x M8 Screws (35mm)

  • 4 x M8 Screws (25mm)

  • 32 x M8 Screws (16mm)

  • 12 x M8 Screws (12mm)

  • 4 x M8 locknuts

  • 36 x M8 T-Nuts

  • Endcaps

  • 5 x 1.5" Endcaps

  • 1 x 3" Endcaps

  • 2 x 4.5” Endcaps

  • 2 x 6” Endcaps

  • 4 x passthrough cable grommets

  • 8 x Pushcaps

  • 16 x Pushpins

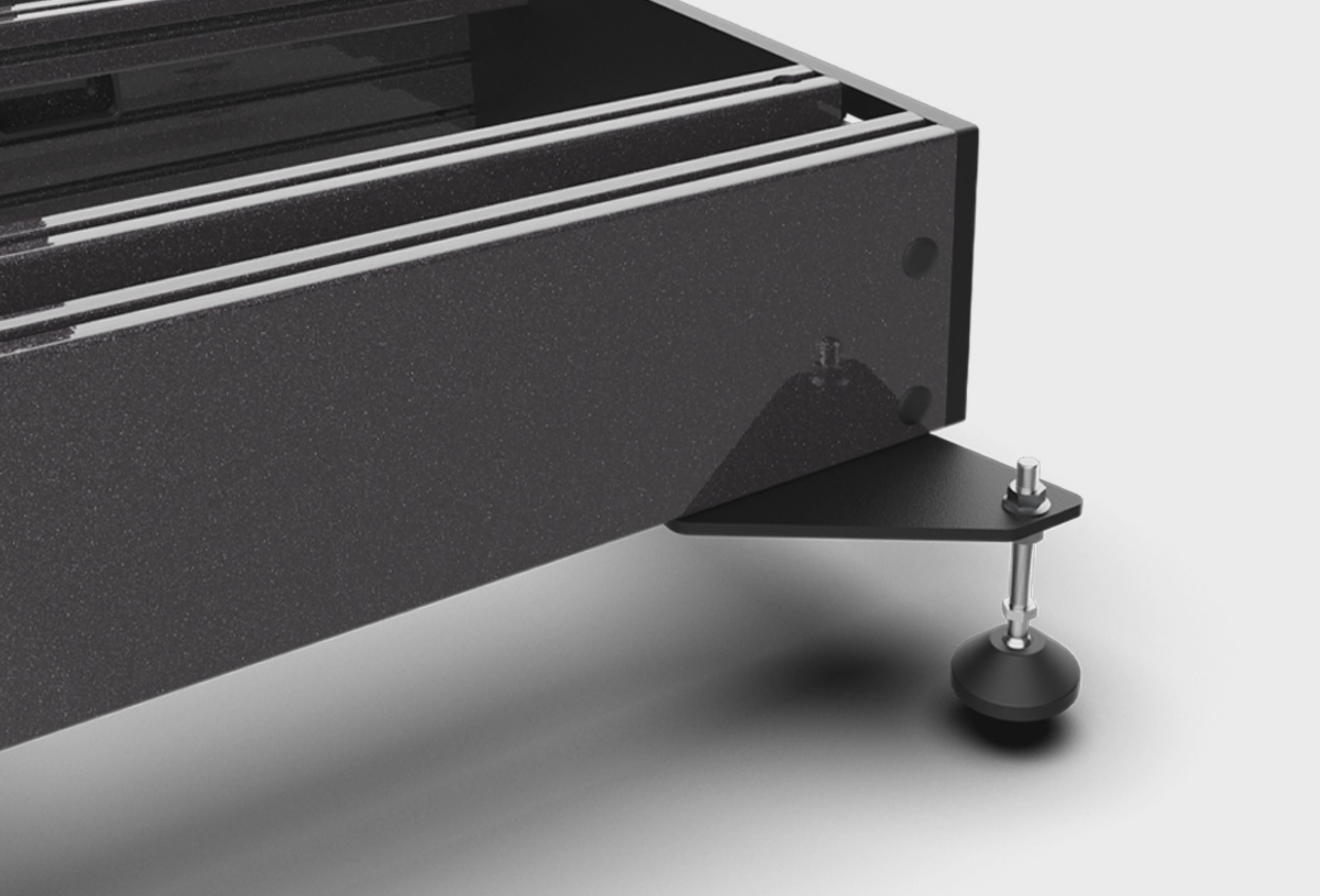

  • 4 x adjustable feet

  • 4 x M10 locknuts

  • 4 x Adjustable feet plate

• Box 5 - Option (Classic Wheel Deck)

  • Common content

    • 8 x Flathead screws (16mm)

    • 2 x Aluminum profile 6 7/8" x 3" x 1.5"

    • 2 x wheel deck brackets

    • *Depending on configuration, one set of the following is included*

  • Standard Wheel Deck Content

    • Standard Steel Plate

    • 2 x 3” endcaps

    • 4 x pushpins

  • Fanatec (Side Mount) Content

    • 2 x DD side brackets (L & R)

    • 2 x CSL DD spacers

    • 4 x M8 Screws (16mm)

    • 4 x M8 Screws (20mm)

  • Simucube & MiGE Motors (Front Mount) Content

    • 2 x DD side brackets (L & R)

    • 1 x Front Mount Plate

    • 4 x M8 screws (16mm)

    • 4 x M8 screws (20mm)

  • Asetek (Front Mount) Content

    • 2 x DD side brackets (L & R)

    • 1 x Asetek Mount Plate

    • 4 x M8 screws (16mm)

    • 4 x M8 screws (20mm)

• Box 5 - Option (Pro Wheel Deck)

  • 6 x Linear guide track

  • 6 x linear guide bearing

  • 2 x 2 7/8” x 3” x 1.5” extrusion

  • 2 x 8” x 1.5” x 1.5” extrusion

  • 2 x lower vertical stopper plate

  • 2 x upper vertical stopper plate

  • 2 x dual bearing plate

  • 2 x single bearing plate

  • 4 x horizontal stopper plate

  • 2 x DD side plate

  • 1 x front mount plate

  • 12 x M8 button head screws (12mm)

  • 8 x M5 screws (16mm)

  • 6 x M5 Flat Head Screws (12mm)

  • 12 x M8 Flat Head Screws (16mm)

• Box 6 - Optional (Back Plate Option)

  • 1 x CNC-Machined Aluminum Back Plate


COMPATIBILITY

• Standard Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10
• AccuForce Pro V2 Steering System
• Moza products
• Front Mount & Side Mount (Simucube/Fanatec/Asetek/MiGE Motor)
• Fanatec Podium Wheel Base DD1 & DD2
• Fanatec CSL DD
• GT DD Pro
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• AccuForce Pro V2 Steering System
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases
• *Note: If you need Asetek compatibility, please contact us.
• PRO Aluminum Pedal Deck & Heel Rest
  • Sim Pedals Sprint
  • Sim Pedals Ultimate
  • Sim Pedals Ultimate+
• Heusinkveld
• MECA Cup1
• Simtrecs ProPedal GT
• Sim Coaches P1-2/3 Pro Hydraulic Pedals
• Simforge Engineering Mark-1
• VRS Pedals
• RaceWerks S1 PRO
• Simworks PRO GT V3.1 LC Pedal Set
• Venym Pedals
• Asetek Pedals
• Fanatec ClubSport Pedals V3
• HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)
• And many more (please inquire directly with us for specific pedal sets)
• NOT COMPATIBLE with the Logitech G29 pedal set

ASSEMBLY GUIDE

The ASR Pro (Generation 2) assembly guide is available right here.

ASR Pro (Generation) with CNC-Machined Back Plate assembly guide is available right here.

Pro Wheel Deck assembly guide is available right here.

SHIPPING AND LEAD TIME

• FREE SHIPPING to all of the Continental U.S., the European Union and Canada (excluding Yukon, Northwest Territories & Nunavut).
• IMPORT DUTIES COVERED for U.S. and European Union based customers.
• We ship from Montreal in Canada.
• Once the items have shipped, transit time typically takes between 2 and 4 business days
• Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.

WARRANTY

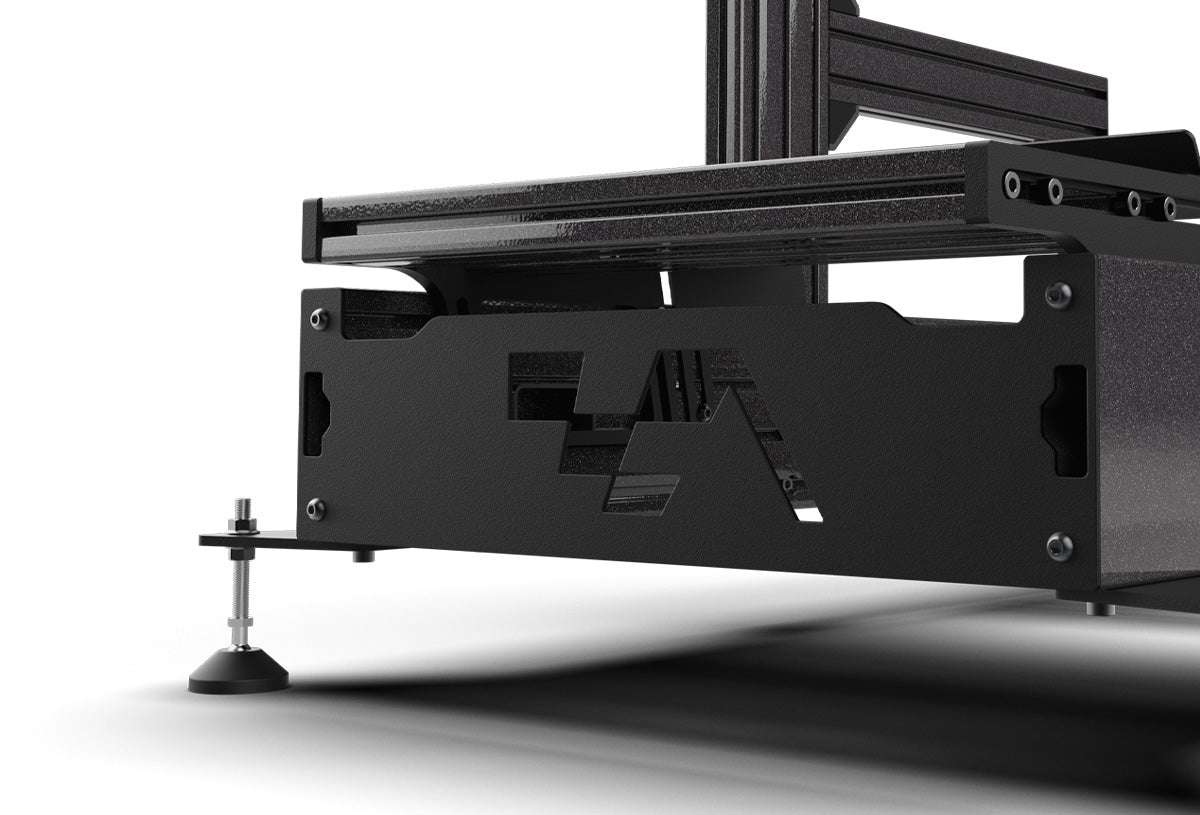

Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.

Warranty coverage limitations:

• Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
• Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
• Damage resulting from misuse, abuse, negligence, accidents or shipping damage
• Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
• Normal and expected wear and tear
• Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
• Dissatisfaction due to buyer's remorse.
