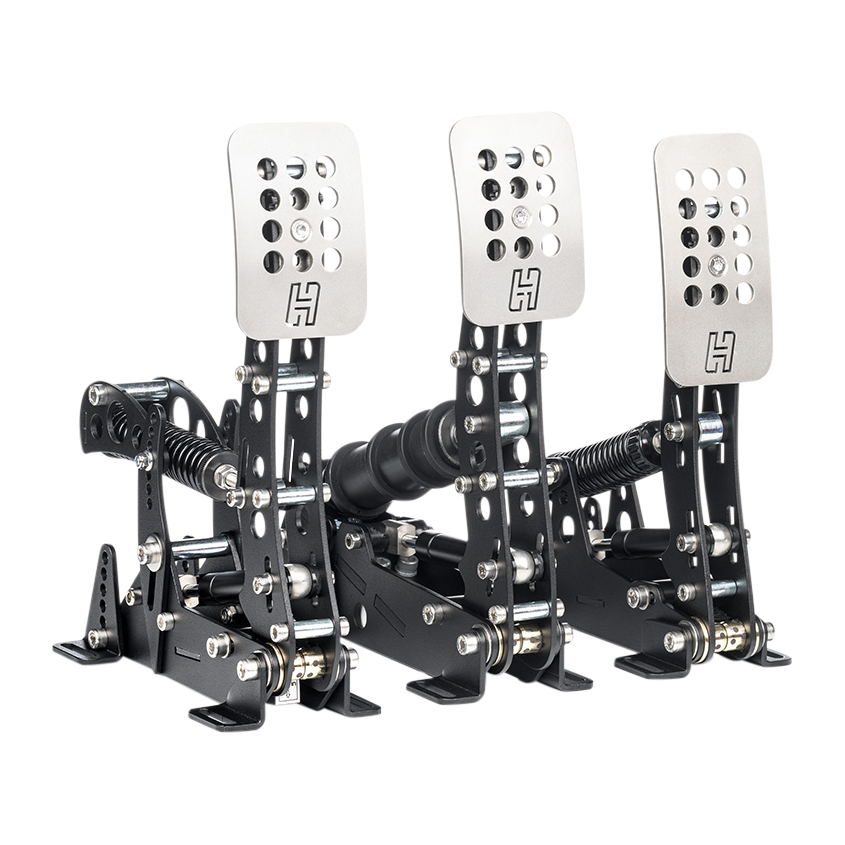

Heusinkveld Ultimate+ Pedals [3-Pedal Set]

Improve your lap times in terms of consistency & speed. Whether you are training for professional racing or aiming to boost your Esports performance, the Ultimate+ pedals are a top-of-the-line products.

Choose from a total of 9 possible brake resistance settings and discover an ultra-realistic experience. Capable of simulating pedal loads as high as in real F1 and GT cars.



FEATURES

Brake with Confidence
Capable of handling up to 140kg of force. Capable of simulating pedal loads as high as in real GT and F1 cars.



Enhance Your Experience
The highest quality, most adjustable and most realistic feeling pedals on the market. Trusted by racing professionals worldwide.



Trusted and Used by Real Racecar Drivers
Heusinkveld Ultimate+ pedals offer the ultimate control for drivers at the highest level, they deliver the precision needed for peak performance. Trusted and used by many real racecar drivers and professional Esporter drivers. The advanced load cell technology and customizable settings ensure a realistic and responsive driving experience.



Be In control with SmartControl
With the included SmartControl software you can easily configure deadzones, brake force and customize pedal output curves. You can even change key settings while driving.



Unmatched Accuracy
Not all load cell pedals are equal. Ultimate+ pedals have properly implemented load sensors based on mathematical design models. So you can rely on a true 1-on-1 relation between your driving inputs and the pedal output to the simulator.



Adjustable Hydraulics on Every Pedal
Two-way damping on the brake and clutch. One-way damping on the throttle. Our bespoke hydraulic dampers provide that realistic pedal box feel and help smoothen your inputs.



Get Everything Out of Your Laptimes
Adding the Heusinkveld Ultimate+ pedals to your simulator gives you precision and performance. You’ll drive more consistent, can change many things to match your favorite car and it feels like you are racing in a real race car. Enjoy simracing with this immersive experience.





ABOUT THE ULTIMATE+ PEDALS

Engineering
Precision and performance
Heusinkveld Ultimate+ are designed for high-end professional motorsport simulators. A strong, compact, durable and adjustable pedal set which is capable of simulating pedal loads as high as in real GT and F1 cars. The proof is in the trust of real drivers and Esport drivers using the Ultimate+ pedals for training.

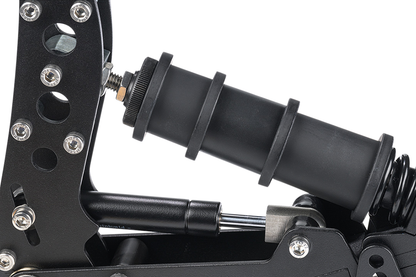

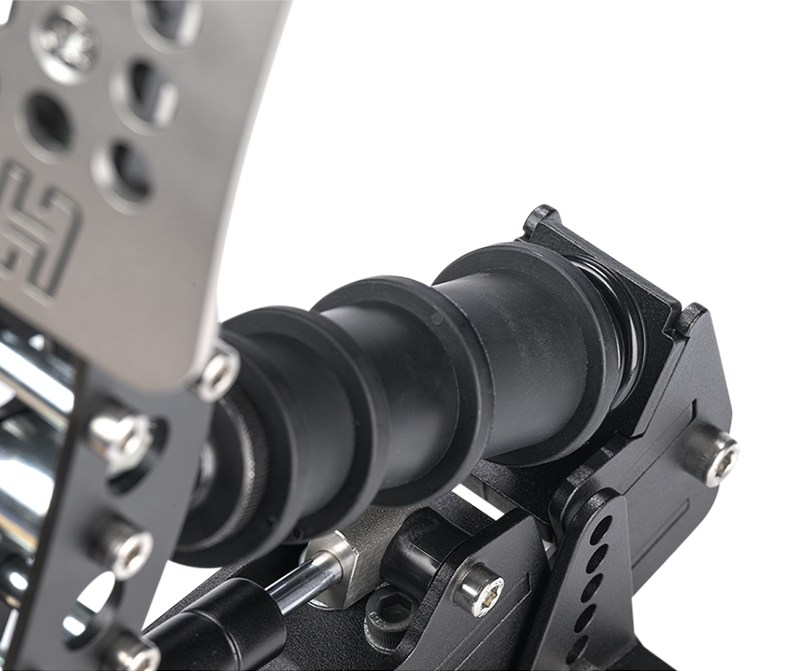

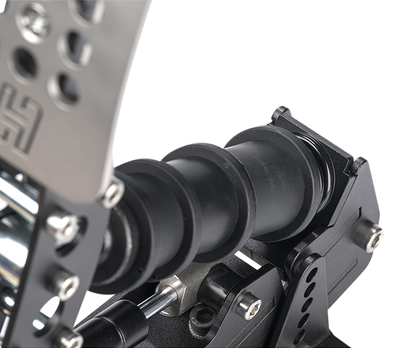

The pedals (brake, throttle and clutch) offer a strong and stiff feeling, the Heusinkveld custom made elastomers for the brake pedal providing you a realistic progressive brake feel, even after thousands of races. The hydraulic damping on every pedal is ultra-reliable and do not require periodic maintenance.

Mathematical models were made to calculate pedal travel and operation force, predicting with great accuracy how each pedal feels in every possible configuration. Design tolerances have been optimized in order to have a minimal amount of play on every assembly. All key pivot points have slide bearings and have gone through automated durability testing to guarantee their functionality after a million duty cycles.



Adjustment Options
Each pedal has different adjustment options but some adjustments are for

Pedals:

• Pedal angle
• Pedal plate height
• Hydraulic damping

Throttle & Clutch:

• Pedal travel
• Overall pedal force

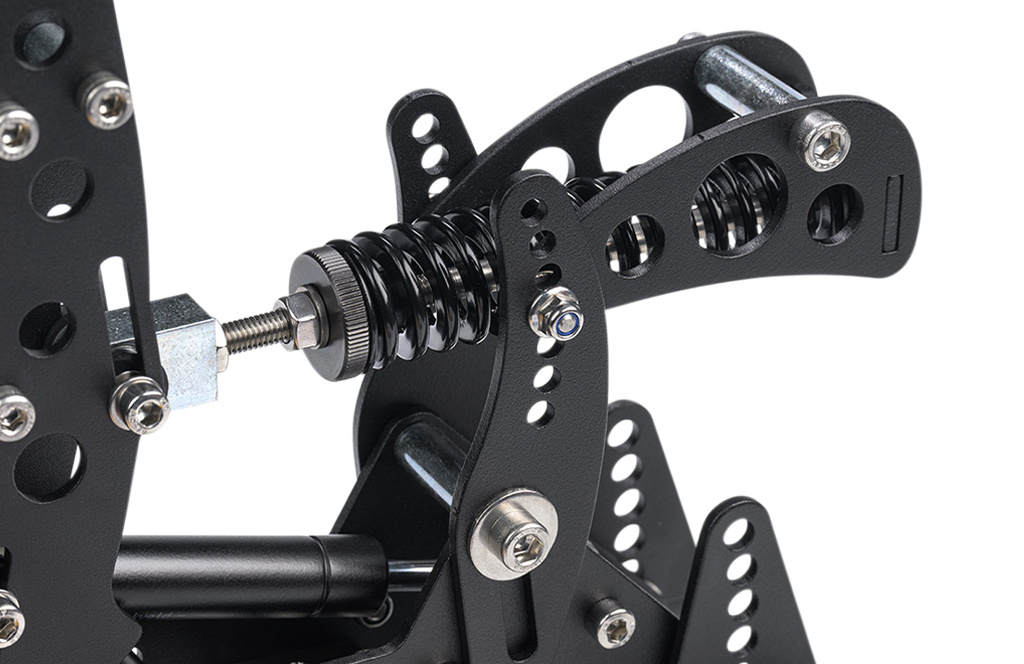

• Pedal spring preload

Brake only:

• Pedal resistance
• Coil spring preload

Software:

• Output curves
• Deadzones



Electronics
Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.



SPECIFICATIONS

Compatibility	PC (Windows 10 or newer)
Software	SmartControl & SmartControl Live
Controller	Yes, external controller box
Plug and play	Yes
Max Actual Braking Force	140 kg
Hydraulic Damping	Yes, adjustable 2-way damping on brake and clutch. Adjustable 1-way damping on throttle
Dimensions	445x310x91mm
Material	Powder coated and glass bead blasted stainless steel
Weight	1.99 kg

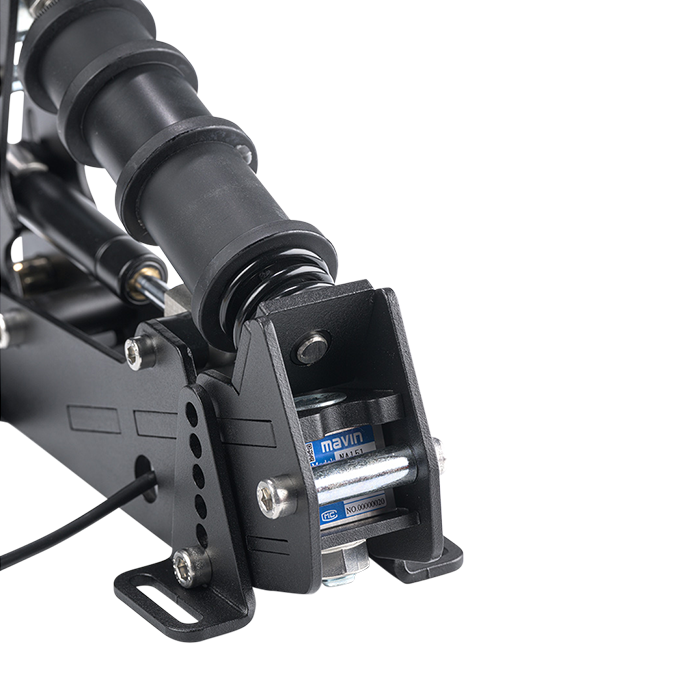

Sensor type	Force-sensitive 200kg load cell (brake pedal) Position-sensitive load cell (throttle & clutch)
Packaging	Eco-Friendly Packaging
Warranty	2 years, 10-year spare parts service
Certificate	EMC + CE
Suitable for	Professional driver training, Esports, commercial use, home use
Type of cars	F1 (realistic brake force), GP2, F3, Indycar, LMP, GT cars, Nascar, Rally, Road cars
Adjustments/settings	9 brake resistance settings, pedal preload, pedal angle, pedal travel, pedal plate height, hydraulic damping, pedal output curves, deadzones
Mounting	On a full frame rig (you can use our Ultimate+ Baseplate





WARRANTY

Heusinkveld gives a 24-month warranty starting from the date of delivery. Repairs and/or replacement deliveries do not create an extension of the warranty period. The warranty means that defects will be remedied free of charge within a reasonable period of time, either by repairing or replacing the products and/or parts in question. The products and/or parts replaced become the property of Heusinkveld. The warranty does not include any further right to compensation from Heusinkveld. The warranty does not cover defects resulting from:

• a. incorrect setup and/or installation;
• b. non-compliance with the (safety) regulations stated in the manual;
• c. inappropriate use;
• d. inappropriate operation;
• e. external influences, such as transport damage and impact damage;
• f. repairs and modifications not carried out by Heusinkveld;
• g. use of non-original parts. Heusinkveld does not warrant that the products are suitable for the purpose for which the Buyer wishes to use them. Under no circumstances are the products suitable for use other than in a simulator.

The products are not suitable for use on (public) roads, on a test track, or as (part of) an electric vehicle.
