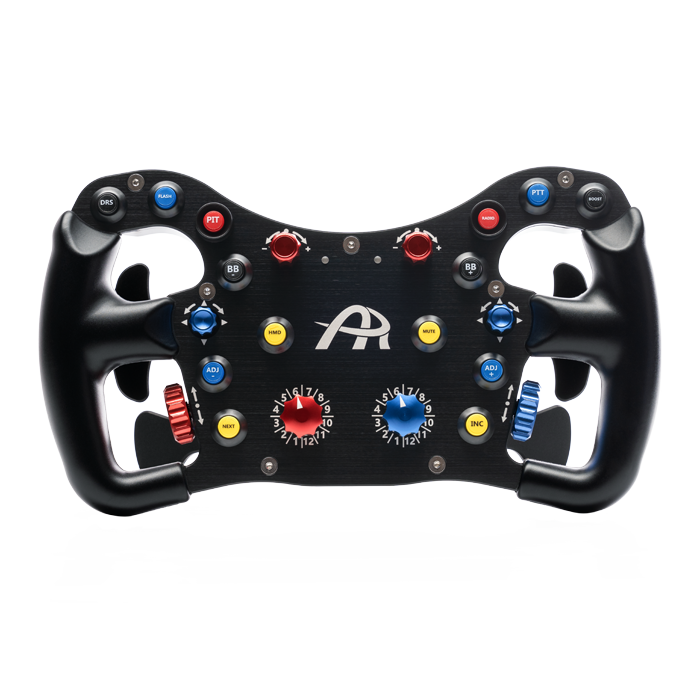

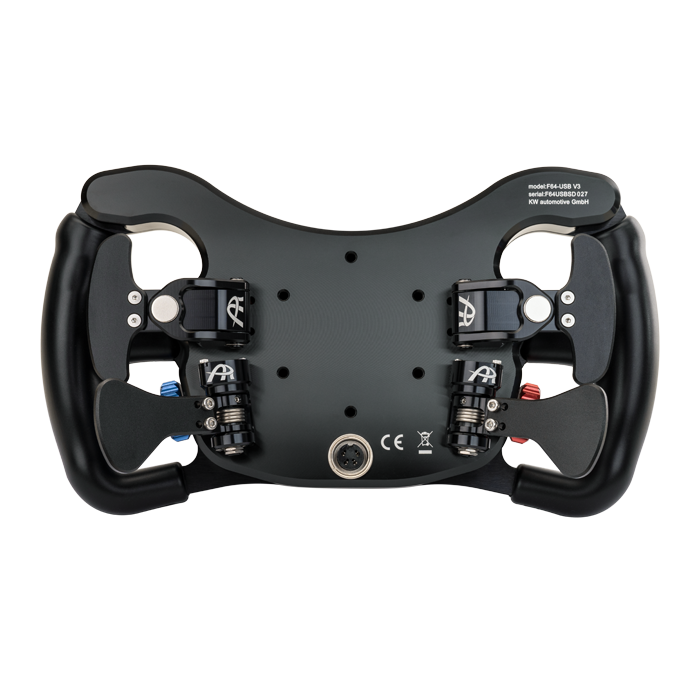

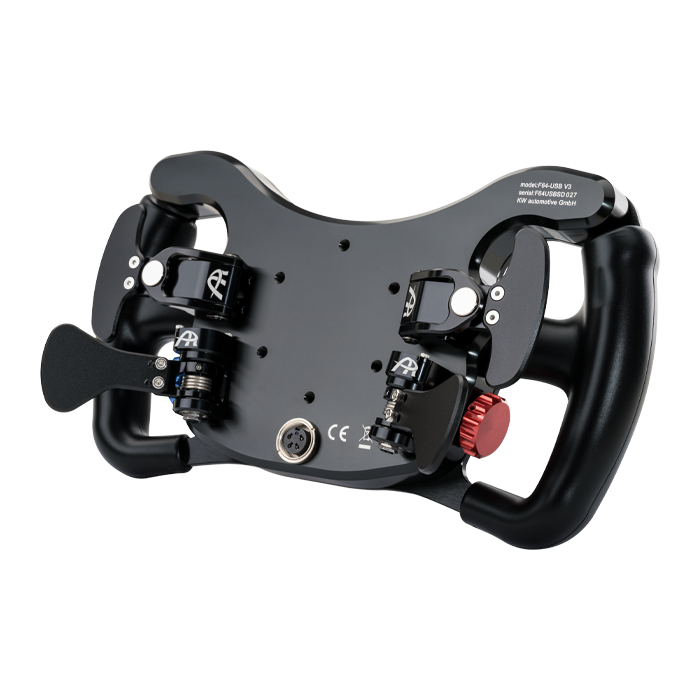

Ascher Racing Steering Wheel F64-SC V3 (Wireless | Simucube 2)

DESCRIPTION

• Product Summary
• Compatible with Simucube Wheelbases

• 285mm diameter
• Maximum grip level from closed, ergonomic rubber grips
• 14 x push buttons with tactile feeling
• 2 x multifunctional 7-way joysticks
• 2 x encoders (inc. push button functionality)
• 2 x 12-position rotary switches
• 2 x thumb encoders
• Magnetic paddle shifters
• Contactless motorsport clutch paddles
• Simucube Wireless

• Wireless connection to SC2
• SC1 (Simucube 1): additional receiver module required
• Low latency
• Low energy consumption: 2-3 years of battery life on heavy daily usage
• Standard 14250 Lithium battery for maximum capacity
• Easy to swap battery via back side access window
• Button inputs via Simucube – no additional Windows controller
• Hot swapping wheels in-game without reconfiguring inputs
• Maximum signal quality via external stub antenna
• New features

• Compared to its previous model, the F64-SC V3 features new encoder, joystick and rotary knobs, as well as new thumb encoders and new motorsport clutches.

• New knobs improve the ergonomics and the feedback of the buttons
• New thumb encoders allow to change setting while driving without taking the hand off the wheel
• New motorsport clutch
• Smooth operation due to pre-tensioned ball bearing design
• Waterproof, shock resistant, wide temperature range
• Contactless, on-axis hall sensor for linear & unlimited operation
• Designed for harsh real racing environment
• Precise and repeatable driver input
• 64 Inputs
• 14 x push buttons with positive tactile feeling
• 2 x protective button guards

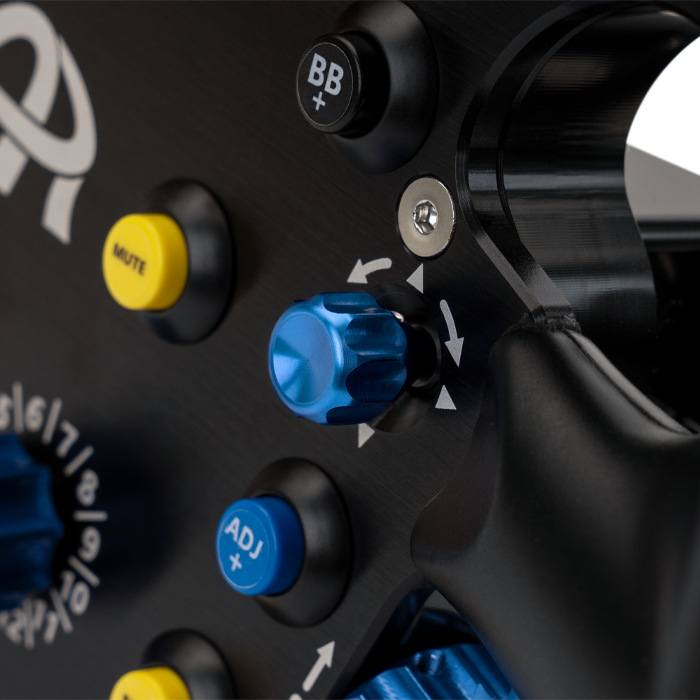

• 2 x multifunctional 7-way joysticks (4 directions / rotate clock- anticlockwise/ push button)
• 2 x encoders inc. push button functionality, aluminium knob
• 2 x 12-position rotary switches, aluminium knob
• 2 x thumb encoders
• 2 x paddle shifters
• 2 x motorsport clutch paddles with electronic bite-point calibration
• Magnetic Paddle Shifters
• CNC machined and anodized out of automotive aluminium
• Strong snap-action force
• Alternative magnets to reduce force included
• Reliable automotive switch
• Contactless Clutch Paddles
• contactless, on-axis hall sensor for linear & unlimited operation
• precise and repeatable driver input
• waterproof, shock resistant, wide temperature range
• smooth operation due to pre-tensioned ball bearing design
• designed for harsh real racing environment
• precision cnc machined aluminium design
• market leading compact design
• Electronic Bite-Point Calibration
• Precise adjustments in 1.0 % and 0.1 % increments
• Change bite-point via configuration tool or directly on the wheel rim:
  1. push both joystick buttons for 1s to acces bite-point mode
  2. LED lights up to indicate calibration mode
  3. rotate left joystick for 1.0 % increments / right joystick for 0.1 % increments (LED flashes to indicate changes)
  4. exit calibration mode by pushing both joysticks again for 1s
• Recommended procedure for finding best setting:
  1. enter calibration mode and set bite-point to high value, e.g. 80 %
  2. pull slave clutch only
  3. apply throttle
  4. reduce bite-point in 1.0 % increments (left joystick) until vehicle starts moving
  5. make test starts to fine tune desired bite-point setting
  6. exit bite-point calibration mode
• Recommended procedure for quick race starts
  1. pull both master and slave clutches
  2. apply throttle
  3. race start -> let master clutch snap
  4. it will take less than 20 ms to reach desired bite-point
  5. slowly release slave clutch
• Button Labels
• 50 pcs button labels each black and white
• 72 pcs encoder labels (blue, green, red, black, yellow, white)
• Labels for various common steering wheel inputs
• High Quality Finish

• Maximum grip level from closed, ergonomic rubber grips
• Machined out of automitive aluminium
• Black anodized and laser engraved
• Brushed frontplate surface finish
• Glass bed blasted paddle surface finish
• Compatible Wheel Bases
• • Simucube 2
  • Simucube 1 (OSW, Mige)
  • Accuforce*
  • Leo Bodnar**
  • OSW (Argon)**
  • Simagic*
  • VRS Direct Force***
  • Fanatec Podium Hub*

  * captive screws are required
  ** Wheelbase comes without QR
  *** longer screws are required

SPECIFICATIONS

• 285 mm wheel diameter
• 6 x 70 mm bolt pattern
• spacer may be required to create sufficient clearance to the wheel base
• M5 x 12 mm stainless screws to mount QR included
• Quick Release not included
• to mount M5 threaded QRs, use captive screws
• mass: 1140 g
