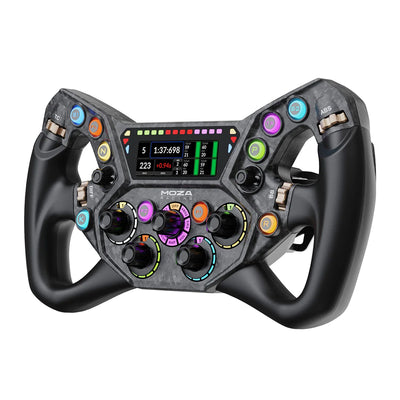

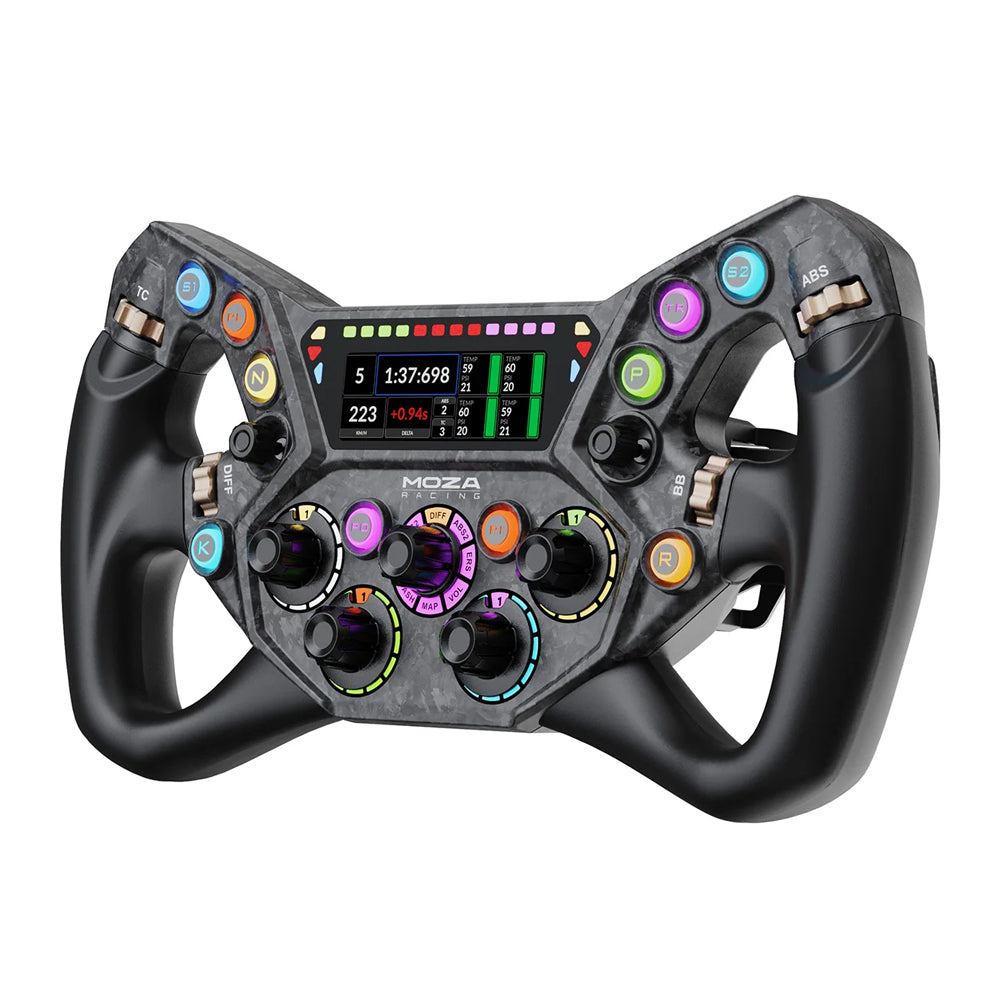

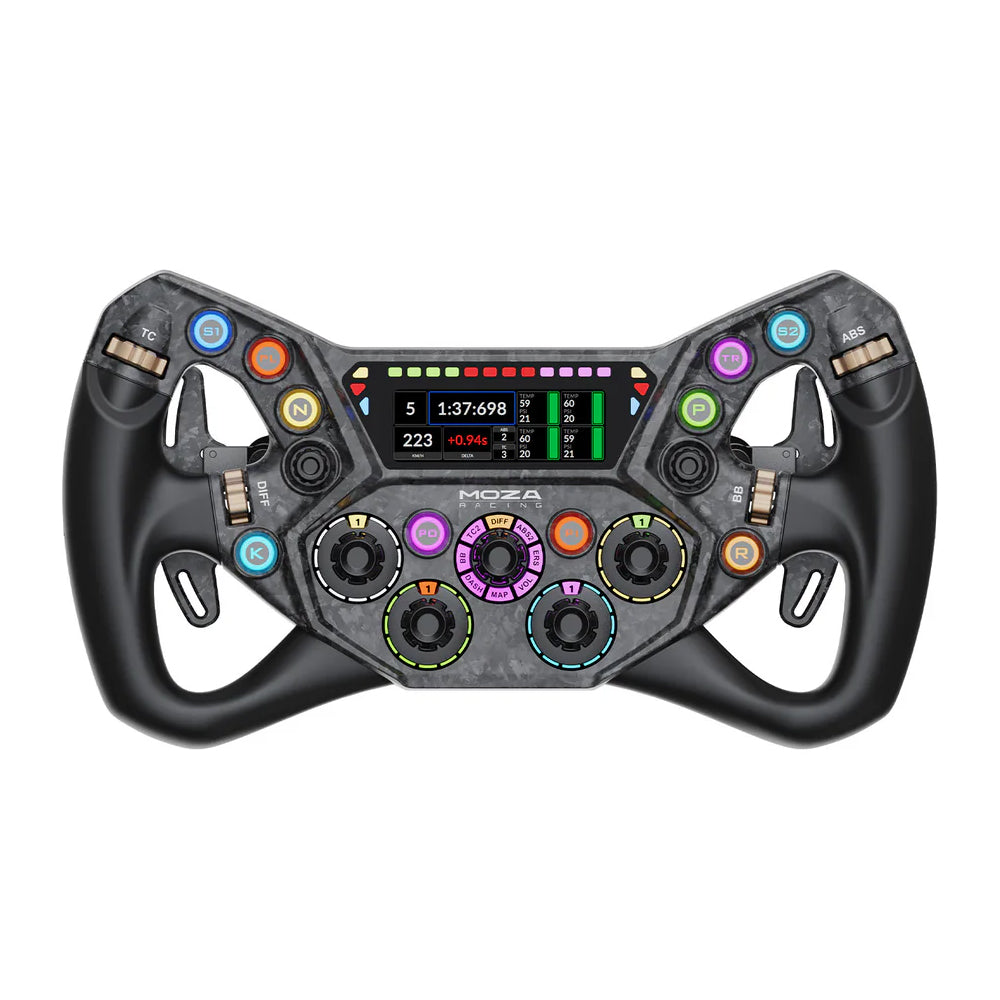

KS Pro Steering Wheel is a butterfly-style 300 mm GT wheel designed for high-intensity sim racing. With a customizable HD display, lightweight carbon fiber-reinforced construction, extensive programmable inputs, and professional RGB telemetry lighting, it delivers fast response, precise control, and a highly immersive driving experience.

FEATURES

Innovative Design
The MOZA KS Pro features a butterfly shaped wheel with an eco-friendly TPE grip. Its ergonomic layout keeps all buttons and dials within easy reach while offering a feature-rich driving experience.

Customizable UI Display
Featuring a 2.99-inch high-definition screen, the KS Pro allows for extensive UI customization through MOZA's Pit House software. Users can design and personalize their dashboards, share them on the MOZA platform, or import designs created by others.

• 2.99 Inch Display
• 60 Hz Refresh Rate
• 268x800 Resolution

Reinforced Structure. Elevated Feedback.
The main structure uses a carbon fiber reinforced composite, combined with a large integrated high-strength steel core to greatly enhance rigidity. This design strikes the ideal balance between lightweight construction and exceptional strength, delivering true Pro-level performance.

Fully Customizable Lighting System
The wheel features four 12-position RGB rotary switches with up to 16.7 million color combinations for quick visual identification of settings. Ten customizable RGB rev lights respond to real-time telemetry, while six RGB flag lights display race signals such as yellow, blue, or red, replicating real-world motorsport alerts.

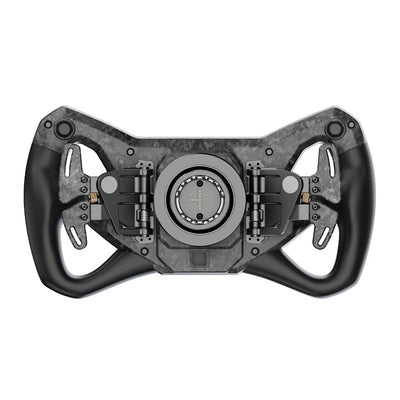

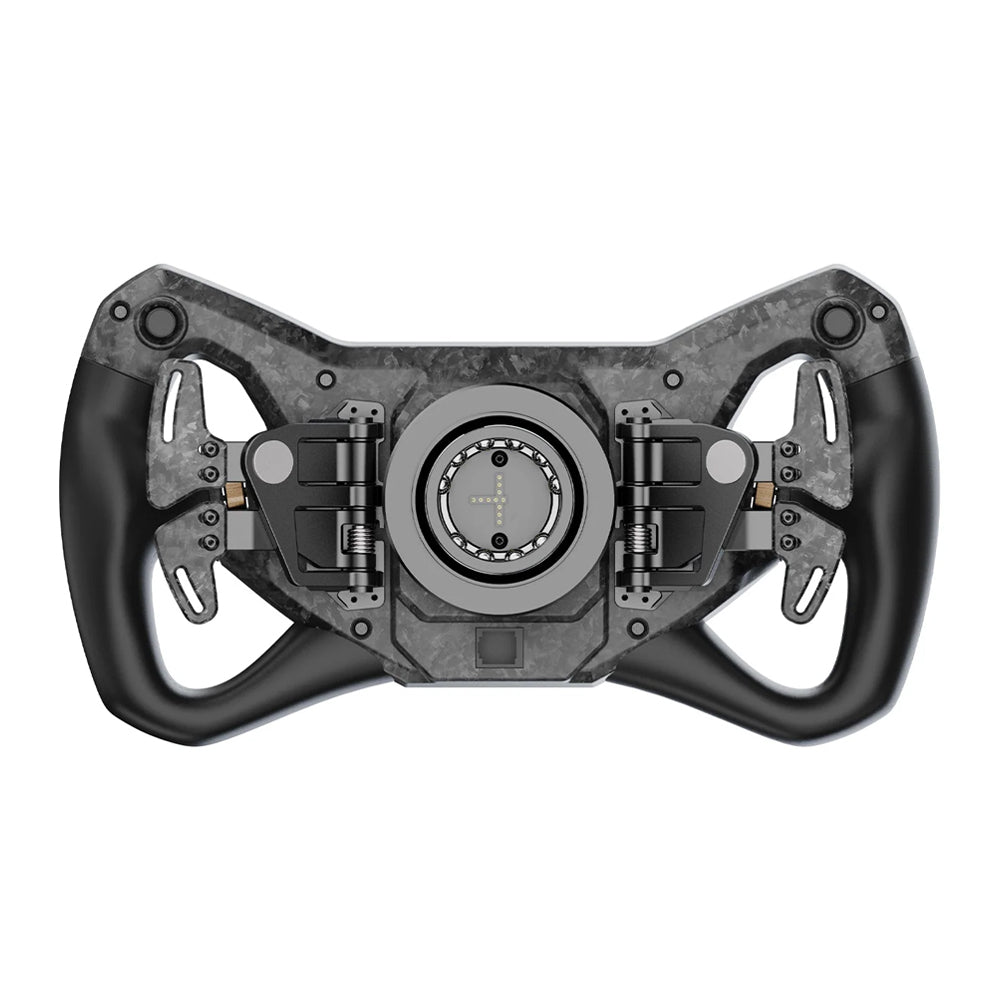

Magnetic Forged Carbon Paddle Shifters with Hall Sensors
The KS Pro uses MOZA's next-generation paddle module with a motorsport-inspired forged carbon and magnetic structure. The dual clutch paddles can function in dual-clutch, single-clutch, or as programmable inputs for ultimate flexibility.

Extensive Input Control
The KS Pro features 10 RGB buttons with fully customizable lighting in 16.7 million colors and two 7-way joysticks for precise directional, press, and rotational input. It also includes four 12-position rotary switches, one 8-position rotary switch, and four thumb wheels for quick adjustment of brake balance, traction control, and other settings, along with two rear buttons. Every control is fully programmable to handle a wide variety of sim racing scenarios.

• 10 RGB buttons
• 4 Twelve-Position rotary encoders
• 1 Eight-Way rotary switches
• 2 Seven-Way funky switches

• 2 Rear Buttons

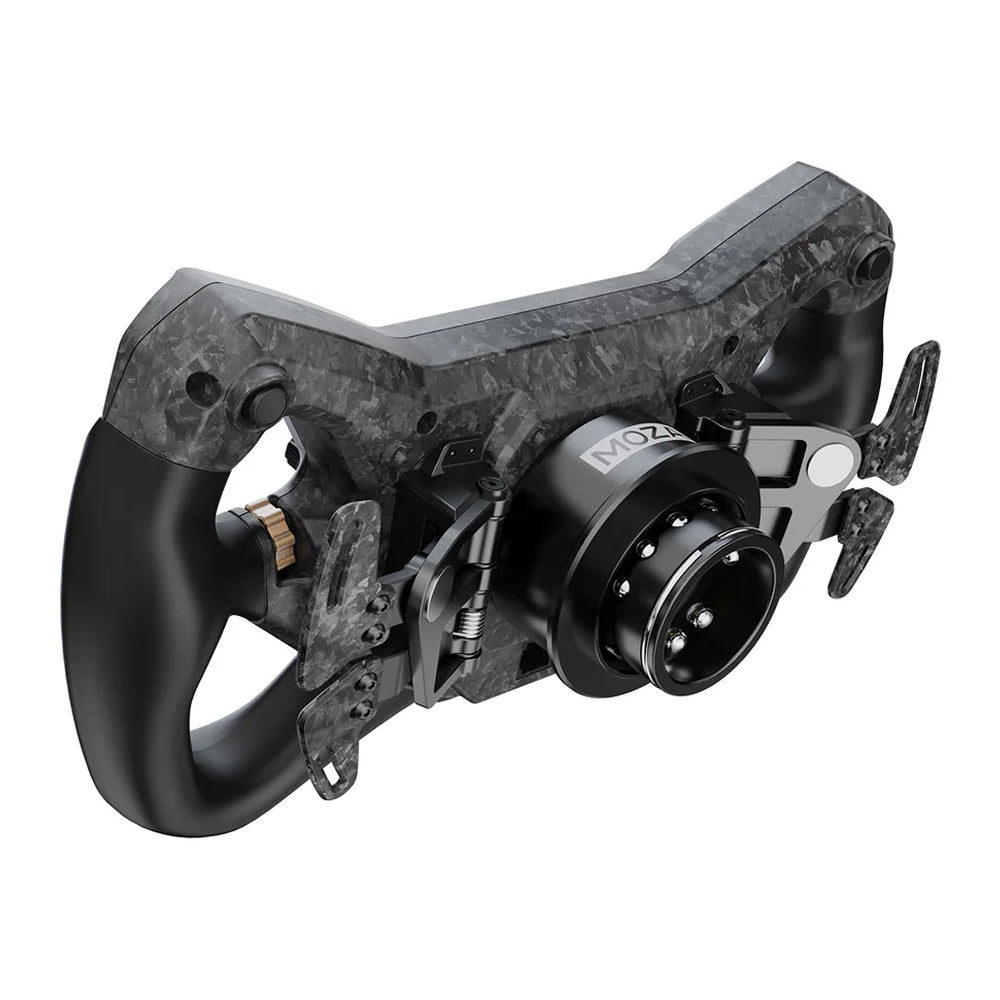

All-Aluminum Quick Release
Its aerospace-grade aluminum quick-release system is modeled after those in real race cars, enabling fast, secure wheel swaps with solid stability.

Third-Party Base Compatibility
The CS Pro is designed with an open ecosystem in mind. It supports direct PC connection via MOZA’s universal hub kit, making it compatible with a wide range of third-party wheelbases.

MOZA Pit House Software Your Racing Command Center
With the Pit House software, users can configure button functions, customize or switch dashboard UIs, and fine-tune LED colors, brightness, and activation timing—all from an intuitive interface built for serious sim racers.

Extreme Durability
Every component has been stress-tested for endurance—from the structural frame to the electronics—ensuring long-term reliability. Buttons withstand over a million presses, encoders and joysticks endure over 200,000 turns, and paddles are tested for 500,000 actuations.

SPECIFICATIONS

WARRANTY

MOZA Racing warranty covers all defects in materials and workmanship for all products sold by http://www.mozaracing.com. Only original, unaltered, and unmodified materials and workmanship are covered by this policy. This warranty does not cover damage caused by improper deployment, misuse, accidents, neglect, or the natural breakdown of materials over time. Products should be returned to us for evaluation. Items with defects in materials and workmanship will be repaired, exchanged, or refunded. For more information about repair, exchange, and returns, please visit our website’s after-service policy.
