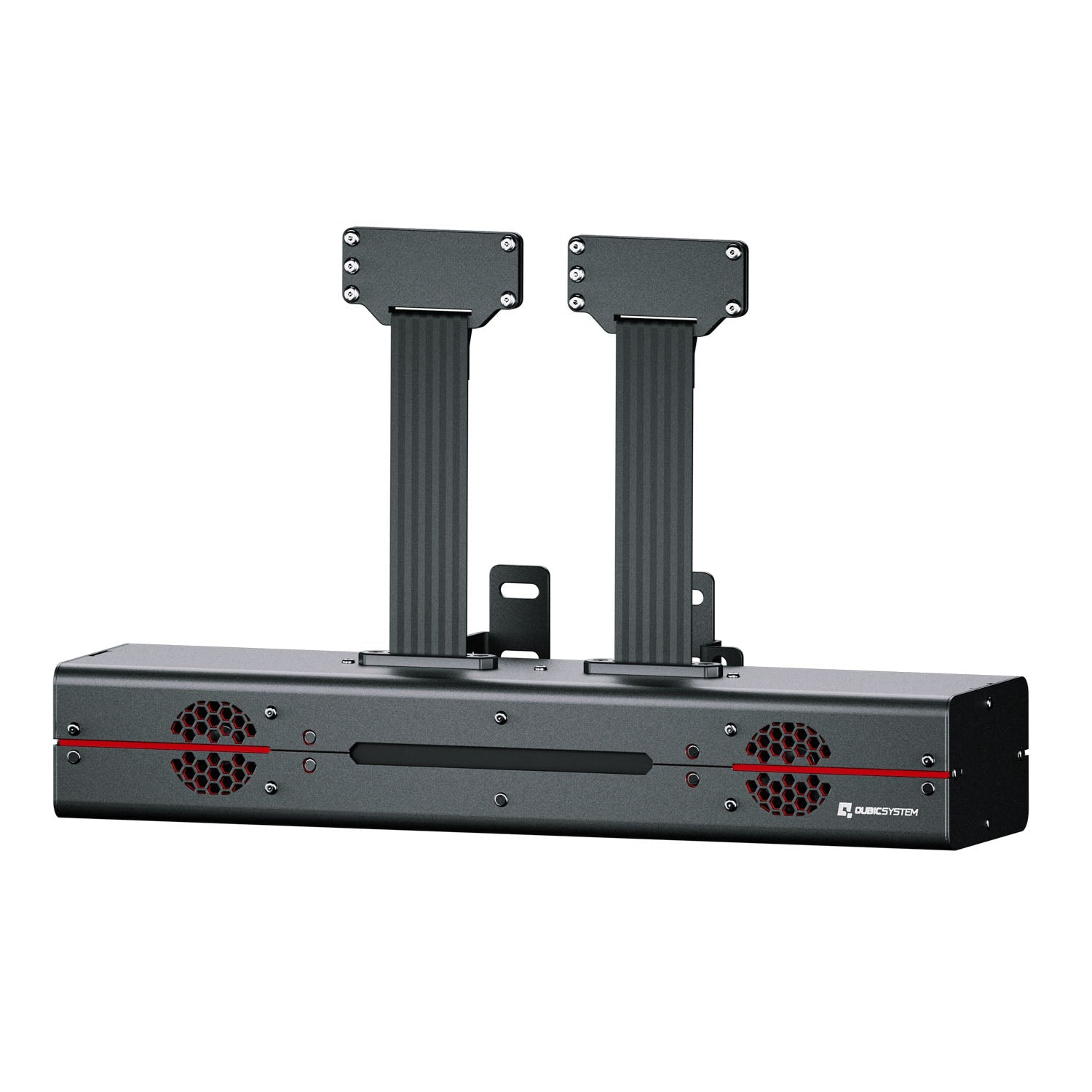

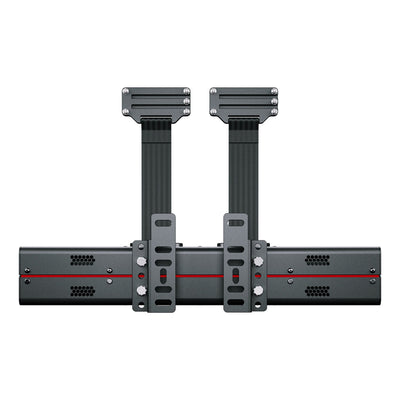

Qubic System QS-BT1 Seat Belt Tensioner

DESCRIPTION

Driven by the same technology as the breath-taking QS-220, QS-BT1 is a multi-purpose, dual channel, direct drive seat belt tensioner that increases sim racing immersion like no other device in its class and price range. It can complete not only force feedback offered by direct drive wheels, but also move up the level of overall experience offered by already really immersive QS motion platforms and if needed, it can even act as a standalone independent device.

Simulation of braking, lateral accelerations, high speed cornering, wheel locks and traction loss are among list of primary features of QS-BT1. Asymmetrical engine vibrations and road surface effects like rumble strips are also available for games that support them and despite being designed mainly for sim racing application, with its 200 N of force per channel, QS-BT1 can also successfully be used in flight simulators, to make you feel gigantic forces during high G maneuvers.

Enhancing Car Braking Simulation Experience
QS-BT1 significantly enhances the level of realism, providing you with an unparalleled opportunity to deeply engage in the intricate dynamics of braking.

This innovative device transforms car simulations into an exhilarating and exceptionally authentic experience, setting a new standard for the intensity and authenticity of virtual driving.

Advanced Steering Simulation with Dual Tensioner Tech
The advanced technology of the dual-channel seat belt tensioner enables precise steering motion simulation, creating a dynamic and realistic experience when turning.

Feel subtle reactions on corners and have full control over the steering wheel, just like in a real vehicle.

Vibration to increase immersion
QS-BT1 is an advanced seat belt tensioner equipped with innovative engine vibration technology. With this device, you can literally feel the pulsation of the engine power, adding realism and intensity to their virtual driving experience.

Engine vibrations are precisely tailored to reflect changing road conditions, responding to dynamic accelerations and gear shifts. QS-BT1 allows you to fully immerse themselves in simulated automotive emotions, delivering unforgettable sensations for both racing simulator enthusiasts and those seeking realistic automotive experiences.

Gear Shifting Realism
QS-BT1 goes beyond traditional simulation experiences by introducing the sensation of gear shifting. Through its sophisticated technology, you can distinctly feel the transition between gears as the seat belts respond accordingly to gear changes.

This innovative integration enhances the overall realism of the driving simulation, providing you with tactile feedback that replicates the nuanced dynamics of a real vehicle, making the virtual driving experience even more immersive and engaging.

Compatibility with other devices
QS-BT1 alone is not able to create sensation of forward acceleration and high speed cruising, especially when driving electric vehicle, where engine vibrations are absent and there is only road noise. Even with all effects tuned up, there is a feeling that something is still missing on long straight, in formula car, driving 300 km/h. Fortunately QS-BT1 is compatible with all motion platforms that are powered by Motion Systems technology (QS, PS, HS [1]) and also with our simple to build, fully OpenSource, DIY WindSim which can easily demonstrate you what it is like to drive a car without a roof… in winter… wearing a wig.

Beyond 4 wheels
Being jet fighter pilot is your dream? You want to experience the overload (G) that pilot feels?

QS-BT1, with its astonish 41 kg/90 lbs of sustained pulling force, allows to experience and feel differences between 1G, 2G, 3G or even 9G. Positive G, negative G or both, everything depends on your preferences, sky it the limit, literally. Centrifugal forces, engine vibrations, cannon fire, missiles launch or flares dispose [2] – all of them generate a accurate feedback through QS-BT1 and immerse you deeply into the simulation. The missing factor that binds your body to the seat, the stress you feel on your body during tight manoeuvres, making you wonder if you really wish to repeat the same manoeuvre, are all finally there to make the gap between reality and the simulation once again smaller.

SPECIFICATIONS

• Powerful Performance: 321W rated power with 4A/115VAC and 2A/230VAC power source.
• Dual-Channel Capability: Two independent channels for a versatile and dynamic simulation experience.
• Advanced Protection: Class 1 protection for enhanced safety during operation.
• Versatile Connectivity: USB interface for seamless integration with Windows PC.
• Pulling Force: 20.5kg/45lbs/200N per channel, providing realistic feedback.
• Multifunctional RGB: Illuminated with customizable RGB lighting for a visually immersive experience.
• Compact and Lightweight: Streamlined dimensions and device weight for practical use.
• Motion Platforms Compatibility: Compatible with QS, PS, HS motion platforms for extended versatility and most cockpits available on the market.
• Effect Diversity: Supported effects vary based on the specific game in use.
• User-Friendly Setup: Maximum length of USB and Motion-Lock cables at 3m for flexible positioning.
• Proudly made in EU: Engineered, Designed and Manufactured in Poland

GENERAL SPECIFICATION OF QS-BT1

• Power Source: 4A/115VAC, 2A/230VAC
• Rated Power: 321 W
• Inrush Current: 20A/115VAC, 40A/230VAC
• Protection Class: 1
• Interface: USB
• Number of Independent Channels: 2
• Pulling Force: 20.5 kg/45 lbs/200 N per channel
• Storage Temperatures: +5°C to +40°C
• Full Performance Temperatures: +5°C to +35°C
• Computer Compatibility: Windows PC
• Supported Effects: Depends on Specific Game
• Multifunctional RGB
• Maximum Length of USB Cable: 3m
• Maximum Length of Motion-Lock Cable: 3m
• Motion Platforms Compatibility: QS, PS, HS [1]

MAIN DEVICES DIMENSIONS:

• Main Dimensions: 561 x 99 x 138 mm/22.13 x 3.90 x 5.43 in
• Main Device Weight: 12 kg/26.46 lbs
• Power Supply Weight: 2.8 kg/6.17 lbs

PACKAGING DETAILS:

• Packing Box Dimensions: 660 x 255 x 180 mm/25.98 x 10.04 x 7.09 in
• Packing Box Weight: 19kg/42 lb
